Pop Rivet Sizes and Dimensions: Common Standards and Variations

Pop Rivet Sizes and Dimensions: Common Standards and Variations

Pop rivets have long been a popular choice when it comes to fastening materials together. These versatile mechanical fasteners offer reliable and secure connections, making them widely used in various automotive, aerospace, construction, and manufacturing industries. Understanding their sizes and dimensions is essential if you've ever worked with rivets or plan to incorporate them into your projects.

Pop rivets come in various sizes and dimensions to accommodate different applications and materials. Whether repairing a sheet metal panel or constructing a lightweight structure, selecting the right stainless steel rivets size is crucial for achieving optimal strength and stability. This blog post delve into pop rivets, exploring the common standards and variations you need to know about.

What are the typical sizes and dimensions of Pop rivets used in general applications?

Pop rivets come in various sizes and dimensions to suit different applications. The size of a pop rivet is determined by its diameter, length, and grip range. Here are some typical sizes and dimensions of pop rivets used in general applications:

  • Diameter: The diameter of a pop rivet ranges between 1/16 inch to 1/4 inch.
  • Length: The length of a pop rivet varies from 1/4 inch to 1-3/4 inches, depending on the diameter of the rivet.
  • Grip range: The grip range of a pop rivet refers to the thickness of the materials that can be joined together using the rivet. It typically ranges from 1/32 inch to 1 inch.

For example, a standard size of solid rivet used in general applications is 3/16 inch in diameter, 1/2 inch in length, and with a grip range of 1/16 to 3/8 inch. This brass rivets size is suitable for joining thin metal, plastic, or other metal sheets together.

Another common size is 1/8 inch in diameter, 1/4 inch in length, and with a grip range of 1/16 to 1/8 inch. This size is suitable for joining lightweight materials such as fabric, leather, or paper.

Selecting the appropriate size and type of solid rivets for your specific application is important to ensure a secure and lasting connection.

Are there specific size standards for automotive industry Pop rivets?

There are specific size standards for Pop rivets used in the automotive industry. The Society of Automotive Engineers (SAE) has established standards for many automotive components, including pop rivets. The SAE J1200 standard provides specifications for blind rivets used in automotive applications.

According to this standard, the diameter of blind pop rivets used in the automotive industry typically ranges from 3/32 inch to 1/4 inch, with a grip range of up to 0.5 inches. The rivet length varies depending on the specific application and material thickness. The SAE J1200 standard also specifies the materials, mechanical properties, and testing requirements for blind pop rivets in automotive applications.

Automotive manufacturers often have their internal standards and specifications for pop rivets used in their vehicles. These standards may vary depending on the specific application and vehicle model. It is important to consult the manufacturer's specifications when selecting pop rivets for automotive repairs or modifications.

How do blind Pop rivet dimensions differ from open-end rivets?

Blind rivet and open-end rivets differ in their design and dimensions. Blind Pop rivets, also known as blind rivets, are designed to be installed from one side of the workpiece without requiring access to the other side. On the other hand, open-end rivets are installed from both sides of the workpiece, requiring access to both sides.

Other rivets would include friction lock rivets, copper rivets, stainless rivets, tubular rivets, structural steel rivets, flush rivets, metal rivets, aluminum dome head rivets and countersunk rivets applications with a good rivet material and quality rivet gun to install rivets.

The main difference in dimensions between the two types of rivets is in the length of the mandrel, which is the central shaft that holds the rivet together as it is being installed. In a blind Pop rivet, the mandrel is designed to break off at a predetermined point once the rivet is fully installed. This means that the overall length of the rivet will be longer than that of an open-end rivet, as it includes the length of the mandrel.

Another dimension difference is the thickness of the materials that can be joined using each type of rivet. Blind Pop rivets are designed to accommodate a range of material thicknesses, with a grip range typically ranging from 1/16 inch to 1 inch or more. Open-end rivets, however, are typically used for thinner materials, with a grip range of up to around 0.5 inch.

Do rivet sizes and dimensions vary based on different materials?

Rivet sizes and dimensions can vary based on different materials. The size and type of rivet needed for a particular application depend on the materials being joined together and the thickness and strength of those materials.

For example, if you are joining two thin sheets of metal, a more miniature diameter pop rivet with a shorter length and grip range may be sufficient. However, if you are joining thicker or heavier materials, such as stainless steel rivets for plates or structural beams, a larger diameter rivet with a longer overall length and grip range may be required to ensure a secure and lasting connection.

Additionally, different types of materials may require different types of rivets. For example, when joining soft or brittle materials such as plastic or ceramic, a plastic rivet or a ceramic rivet may be necessary to prevent damage to the materials during installation.

Similarly, when joining materials such as wood or fabric, a rivet with a specially designed head or washer may be needed to distribute the load and prevent damage to the material.

What are the standard size options and recommended applications for closed-end Pop rivets?

Closed-end Pop rivets, also known as sealed rivets, are designed to provide a strong and watertight seal in applications where moisture or other environmental factors may be a concern. Here are some standard size options and recommended applications for closed-end Pop rivets:

  • Diameter: Closed-end Pop rivets typically come in 3/16 inch or 1/4 inch diameters.
  • Length: The length of a closed-end Pop rivet can vary depending on the application and material thickness. Standard sizes range from 1/4 inch to 1-3/4 inches.
  • Grip range: Closed-end Pop rivets have a grip range of up to 1/2 inch, making them ideal for joining thin to medium-thick materials.

Recommended applications for closed-end Pop rivets include:

  • Automotive and marine applications: Closed-end Pop rivets are commonly used in automotive and marine applications because they provide a watertight seal. They are often used to join body panels, trim pieces, and other components.
  • Roofing and gutter installation: Closed-end Pop rivets can be used to attach roofing panels, gutters, and downspouts, providing a waterproof seal in areas prone to high moisture levels.
  • HVAC and ductwork: Closed-end Pop rivets are ideal for attaching ductwork and HVAC components, as they can help prevent air leaks and maintain the system's efficiency.
  • Electrical enclosures: In electrical enclosures and control boxes, closed-end Pop rivets can be used to create a secure and waterproof seal to protect sensitive components from moisture.

In summary, closed-end Pop steel rivets come in standard sizes ranging from 3/16 inch to 1/4 inch in diameter and 1/4 inch to 1-3/4 inches in length, with a grip range of up to 1/2 inch. They are ideal for applications requiring a solid and watertight seal, such as automotive, marine, roofing, HVAC, and electrical enclosure applications.

How does the size and length of a Pop rivet impact its load-bearing capacity?

The size and length of a pop rivet are crucial factors that impact its load-bearing capacity. Larger-diameter rivets generally have higher load-bearing capacities due to their larger cross-sectional area.

The grip range, the thickness of the fastened materials, determines the rivet's ability to hold them together securely. Using a pop rivet with a grip range smaller than the material thickness can result in a weak joint. The length of the rivet, specifically the mandrel, determines the depth of engagement and distribution of load along the rivet's body.

Longer aluminum pop rivets can withstand higher forces and offer increased load-bearing capacity. It's important to consider material characteristics and consult guidelines to select the appropriate rivet size and length for optimal load-bearing capacity.

Are there specialized size standards for aerospace or marine industry Pop rivets?

Specialized size standards for countersunk head pop rivets are used in the aerospace and marine industries. These industries have specific requirements for rivets' strength, durability, and corrosion resistance due to the harsh environmental conditions that aircraft and marine vessels are exposed to.

The aerospace industry has established rivet specifications under the Society of Automotive Engineers (SAE) Aerospace Material Standards (AMS) system. The AMS-DTL-22499 specification covers the requirements for aluminum alloy 2117-T4 blind rivets used in aircraft structural applications.

The specification provides standards for rivet diameter, length, grip range, shear strength, and tensile strength, among other properties. Rivets used in different areas of an aircraft may have different size requirements, depending on the specific application.

Similarly, the marine industry has established its specifications for rivets used in shipbuilding. The International Standards Organization (ISO) has established standards for aluminum alloy rivets designed explicitly for marine structures, such as ISO 15977. These standards cover various aspects of rivet design, including size, strength, and corrosion resistance.

It is important to note that these technical standards are typically more stringent than those used in general industrial or commercial applications, as the safety and reliability of aircraft and marine vessels depend on the quality of the components used.

What considerations should be made when choosing rivet size for thin or thick materials?

When choosing large flange aluminum rivets size for thin or thick materials, several considerations should be taken into account to ensure a secure and long-lasting joint. Here are some factors to consider:

  • Material thickness: The materials being joined are important when selecting the right rivet size. Thicker materials require larger diameters and longer rivets to ensure a strong and secure joint.
    • Grip range: The grip range of a rivet refers to the maximum thickness of the materials that can be joined together with that particular rivet size. It is important to select a rivet with a grip range appropriate for the thickness of the materials being joined.
    • Shear strength: In addition to grip range, it is important to consider the shear strength of the rivet when selecting a size. This is particularly important in applications where the joint will be subjected to high levels of stress or vibration. A weak or undersized rivet may fail prematurely, leading to joint failure.
    • Hole size: The size of the hole drilled in the materials being joined must also be considered when choosing a rivet size. The hole should be drilled to the correct size for the rivet being used to ensure a tight fit and prevent the rivet from pulling out of the hole.
    • Type of material: The type of material being joined also affects the choice of rivet size. Soft or brittle materials, such as plastic or ceramics, require a smaller diameter and shorter rivet, while harder and more resilient materials, such as steel or aluminum, require a larger diameter and longer rivet

How do different head styles of Pop rivets influence their overall dimensions?

The head style of a pop rivet plays a significant role in determining its overall dimensions and appearance. Different head styles are designed to provide specific functionalities and aesthetic options. Here's how different head styles of pop rivets can influence their overall dimensions:

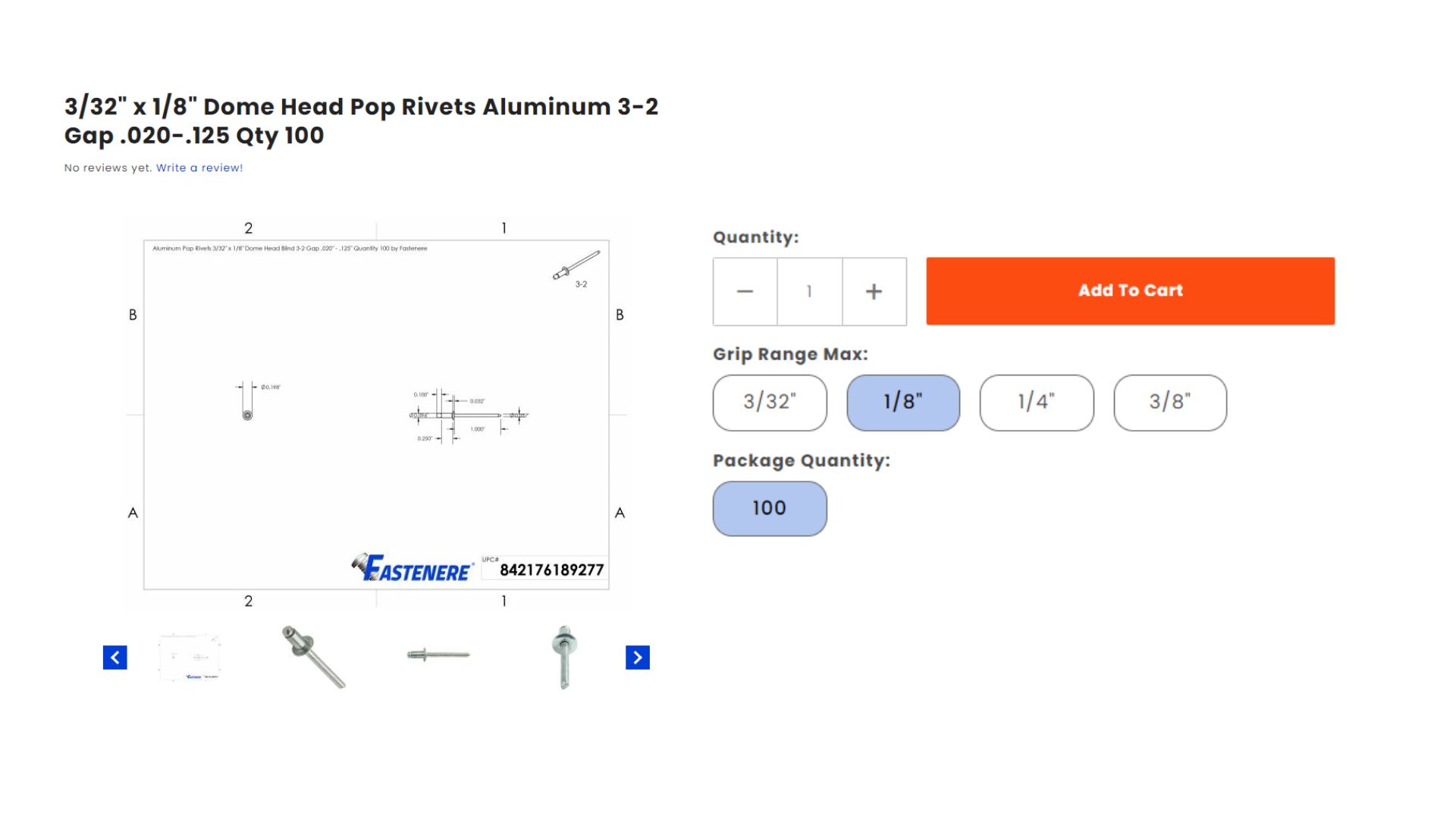

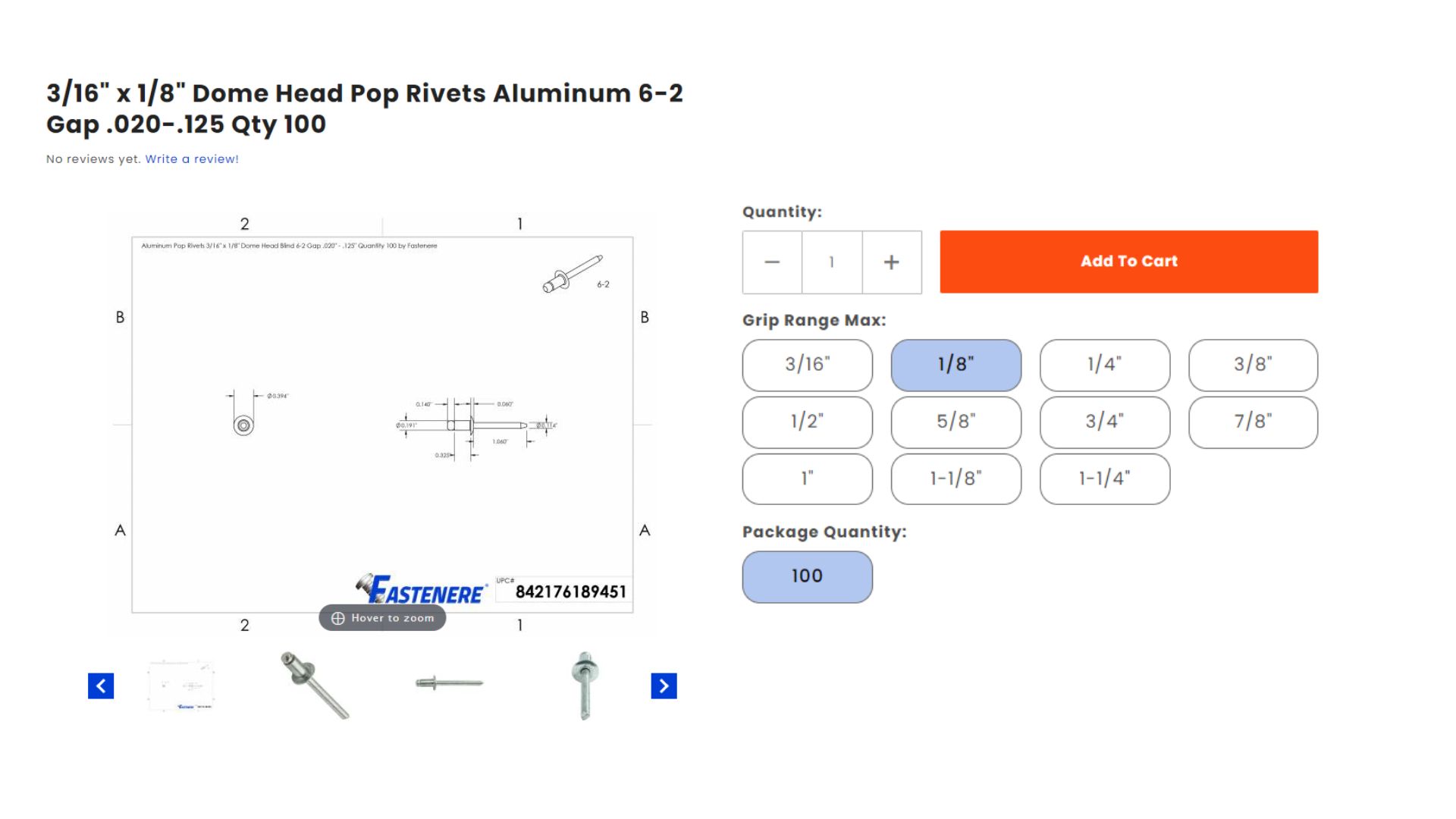

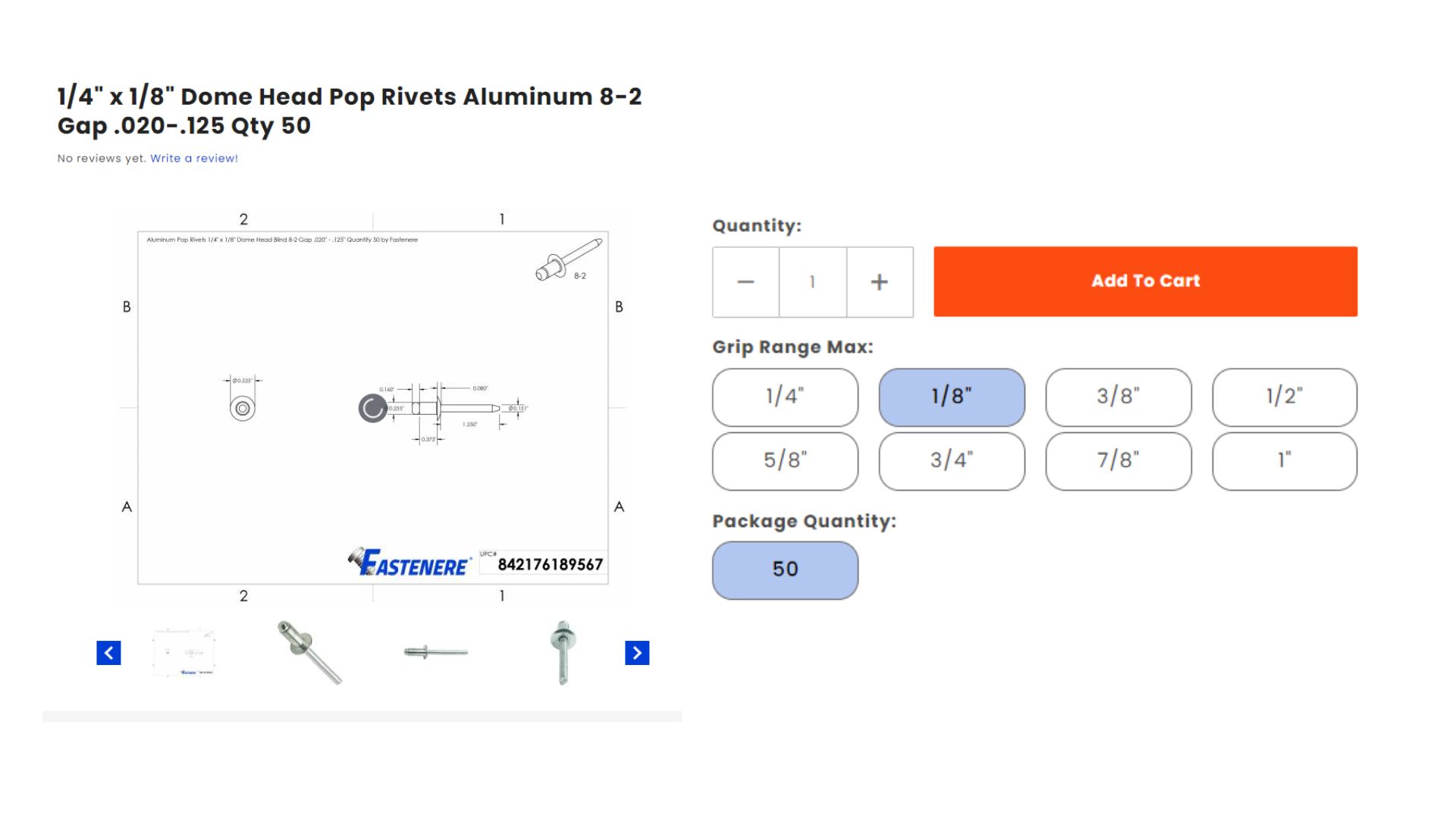

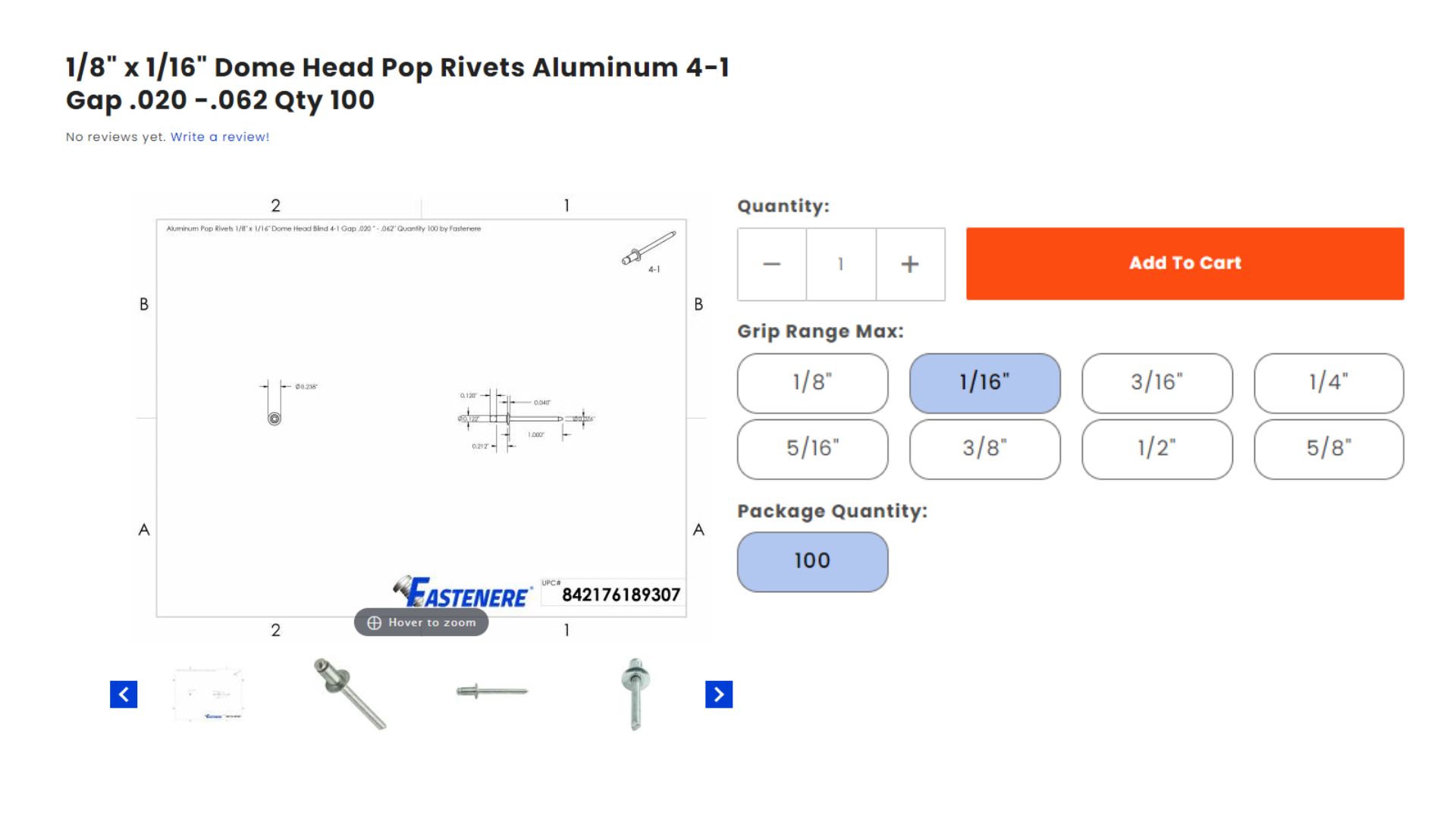

  1. Dome Head: Dome head pop rivets have a rounded, dome-shaped head that sits flush on the material's surface when properly installed. The desired head diameter and height influence the dimensions of the dome head rivet. The head diameter is typically larger than the rivet body diameter, providing a broader bearing surface. The height of the dome head can vary depending on the specific application requirements and the manufacturer's design.

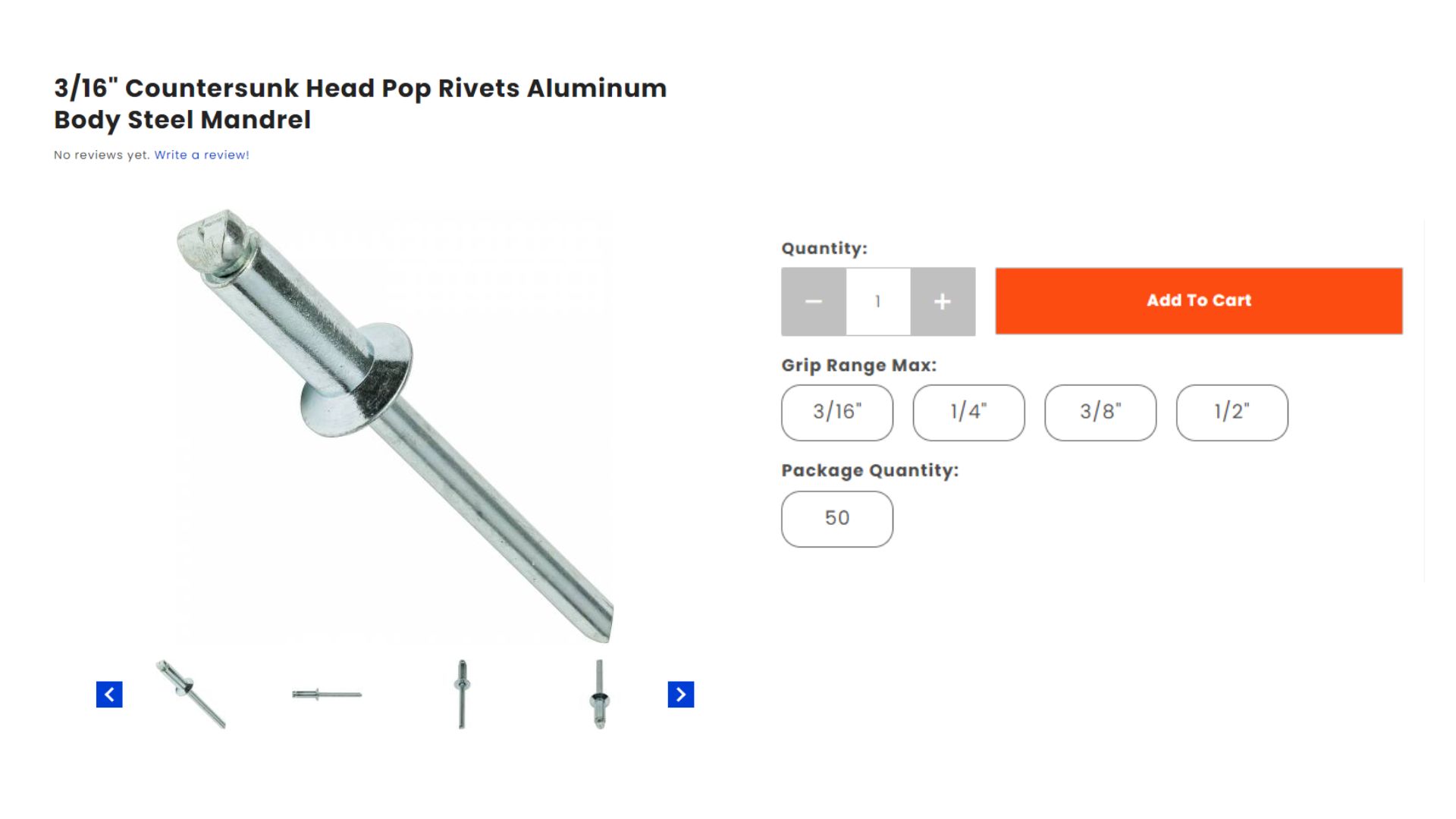

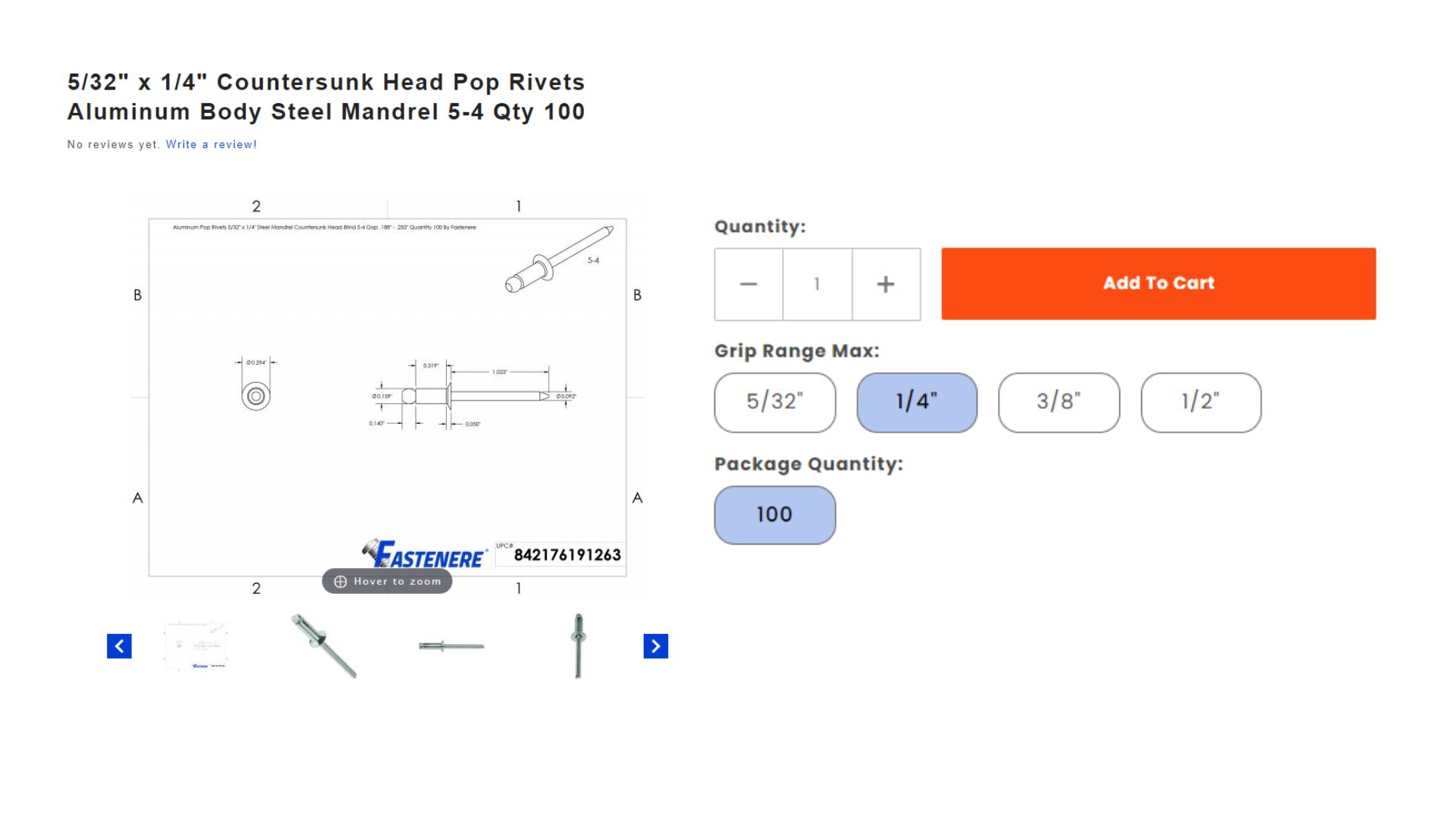

  2. Countersunk Head: Countersunk head pop rivets are designed to create a flush or recessed finish when installed. These rivets have a flat or slightly concave head that can be countersunk into the material, allowing for a smooth surface. The head diameter, head height, and the angle of the countersink determine the overall dimensions of countersunk head rivets. The head diameter is generally larger than the rivet body diameter, providing a wider load-bearing area.

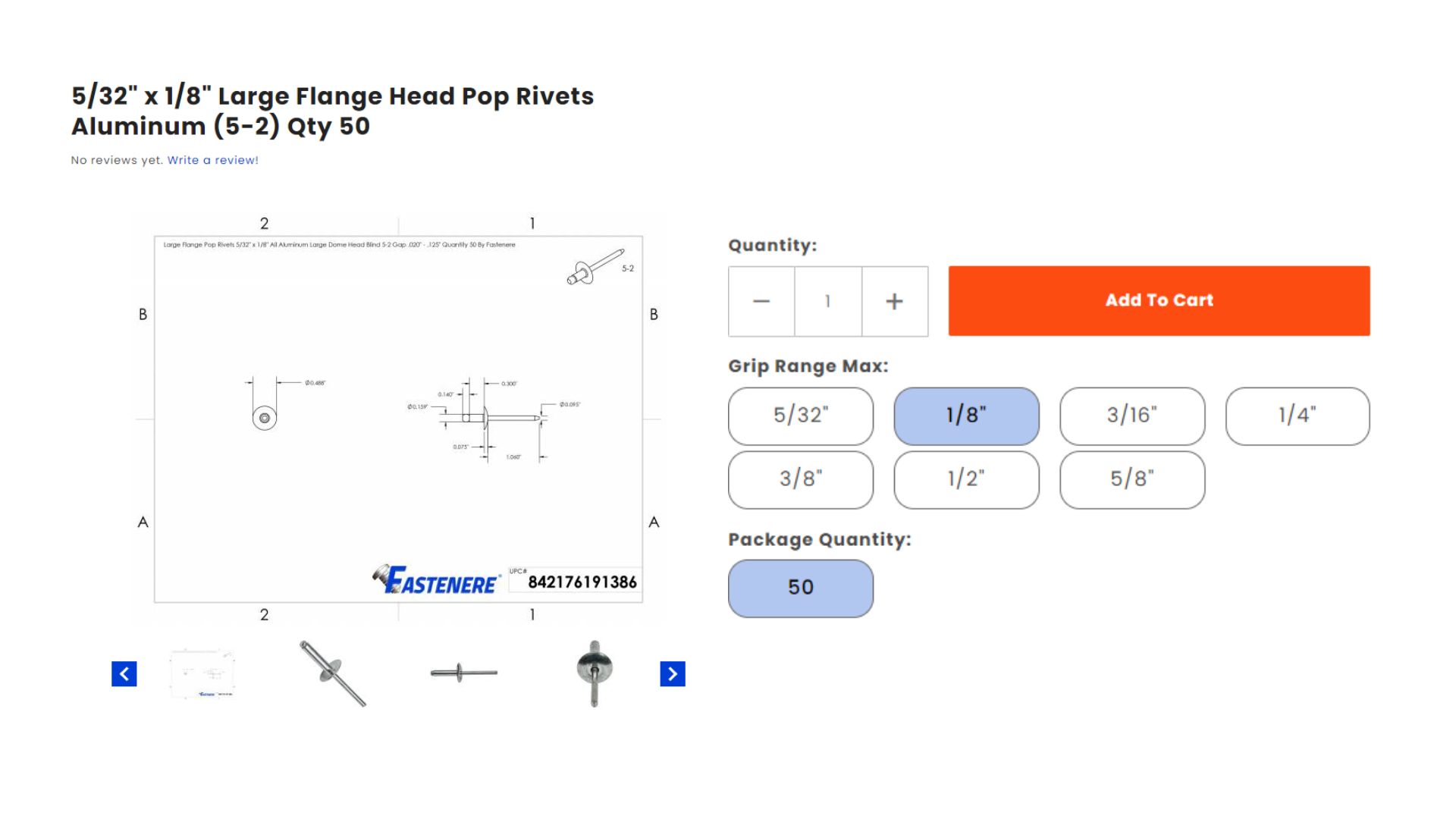

  3. Large Flange Head: Large flange head pop rivets feature an extended flange around the head. This design offers a larger load-bearing surface, increased pull-through resistance, and improved clamp force distribution. The head diameter, flange diameter, and flange height influence the dimensions of large flange head rivets. The head diameter is typically more significant than the rivet body diameter, and the flange adds width to the dimensions.
  4. OVAL/Truss Head: Oval or truss head pop rivets have a low-profile, oval-shaped head. This head style provides a wider bearing surface and distributes the load evenly. The head diameter and height influence the overall dimensions of oval or truss head rivets. The head diameter is typically larger than the rivet body diameter, and the head height determines the rivet's overall protrusion above the material's surface.

It's important to note that different manufacturers may have slight variations in the dimensions of pop rivets, even within the same head style.
